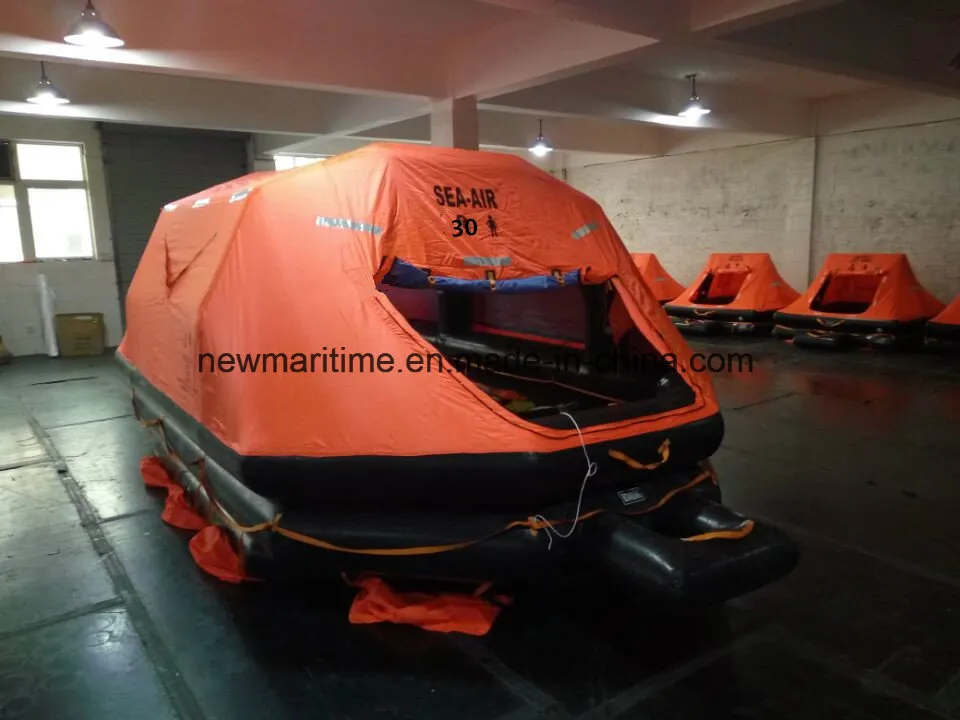

Marine Self-Righting Inflatable Life Raft /Liferaft/Lifesaving Raft
SOLAS approved 4-26 persons Self Inflatable LifeRaftthe specification of the HSR-YJ SOLAS Inflatable Liferaftl Suitable for installing in the vessels sailing on international voyages.l It meet the China MSA-"Regulations fot the Statutory of Ships and off shore Installations---Technical Regulati......
Send Inquiry
Product Description
the specification of the HSR-YJ SOLAS Inflatable Liferaft
l Suitable for installing in the vessels sailing on international voyages.
l It meet the China MSA-"Regulations fot the Statutory of Ships and off shore Installations---Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged in Domestic Voyages"2004, and it's 2008 Amendments, Part4,Ch,3, and SOLAS(74/96), LAS, MSC.81(70),MSC.226(82),MSC.218(82),MSC.293(87),MSC.323(89).ISO15738(2002).
l Max.Storage Height:18-50m
l Equipment Outfit: HSC PACK
l Certificates: CCS,GL
Application of the HSR-YJ SOLAS Inflatable Liferaft :It is suitable for installing ships on international voyages.
Product Standard of the HSR-YJ SOLAS Inflatable Liferaft :It meets the requirements of Regulations for the Statutory Surveys of Ships and Offshore Installations
"Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged on International Voyages(2004) "of P.R.C. and SOLAS 74/96Amendment, LSA,MSC.81(70).
Equipment Outfit of the SOLAS Inflatable Liferaft :A Pack or B Pack (Ships engaged on Short intermational voyage)

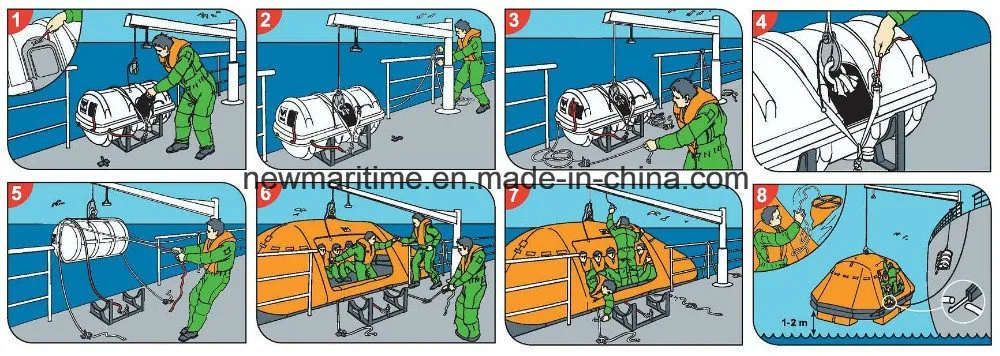

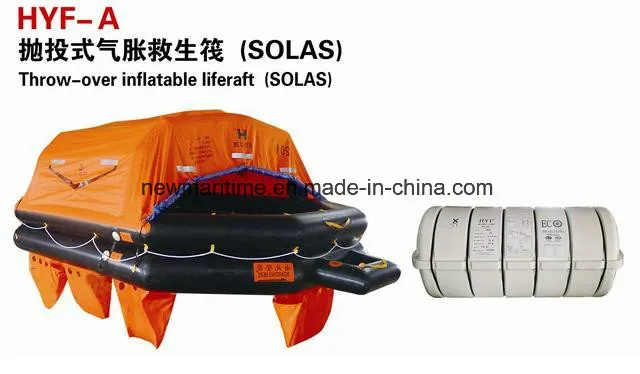

Inflation method of the SOLAS Inflatable Liferaft :After throw-over from ship,the life-raft can be inflated and opened automatically.If the ship sinks very fast and the life-raft can not be thrown-over,the raft still can float up from water under the action of Hydrostatic Release Unit and can be inflated and opened automatically
Max.Storage Height of the SOLAS Inflatable Liferaft :The installation height is 18-35m from water surface
Certificate:CHINA CLASSIFICATION SOCIET (CCS)
CERTYFICATE OF TYPE APPROVAL
Register of fishing vessel of P.R.C(ZY)
Certificate of Type Approval
Germanischer Llyod AG(GL)
EC Type Examinaton Certificate
the parameters of the SOLAS Inflatable Liferaft
| Type | ADL-12 | ADL-15 | ADL-16 | ADL-20 | ADL-25 | |
| Shape | rectangular octagon | long decagonal | rectangular dodecagon | |||
| Capacity (Persons) | 12 | 15 | 16 | 20 | 25 | |
| Dimensions (L×W×H) (mm) | 2983×2903×1450 | 3310×3220×1550 | 3392×3302×1650 | 3986×3710×1850 | 4225×4065×2000 | |
| shackle position height(mm) | 1600 | 1700 | 1800 | 2000 | 2200 | |
| Cylinder (L) | 5L×2 | 6L×2 | 6L×2 | 9L×2 | 12L×2 | |
| Max. storage height(m) | 18~36 | |||||

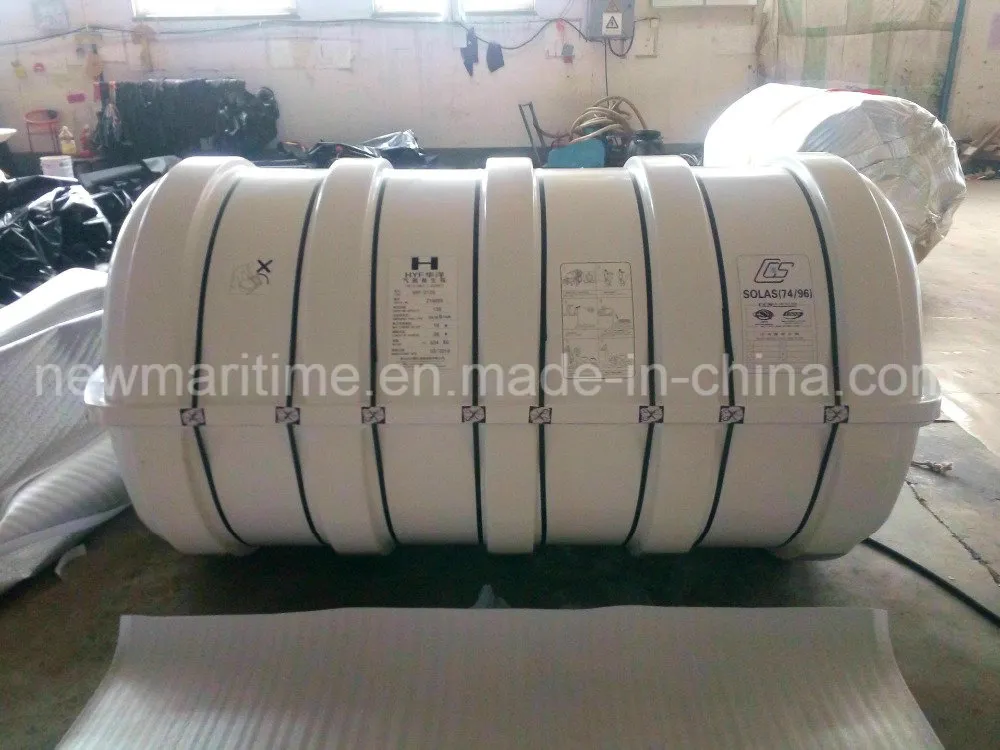

| Container dimension(mm) | SOLAS A PACK (a×b) | 1350×Φ660 | 1550×Φ660 | 1550×Φ660 | 1600×Φ780 | 1680×Φ780 |
| SOLAS B PACK (a×b) | 1350×Φ660 | 1350×Φ660 | 1350×Φ660 | 1550×Φ660 | 1600×Φ780 | |
| Packaging dimension(mm) | SOLAS A PACK (c×d×e) | 1410×720×770 | 1610×720×770 | 16110×720×770 | 1660×840×890 | 1740×840×890 |
| SOLAS B PACK (c×d×e) | 1410×720×770 | 1410×720×770 | 1410×720×770 | 1610×720×770 | 1660×840×890 | |
| Requied bollard pull(kN) | For 2knot speed | 1.08 | 1.25 | 1.28 | 1.35 | 1.46 |
| For 3knot speed | 2.04 | 2.48 | 2.52 | 2.65 | 3.02 | |
| (kg)Weight | ≤145 | ≤180 | ≤185 | ≤220 | ≤230 | |
We are proficient in personal saving equipments, and all products can be customized!
Our advantages

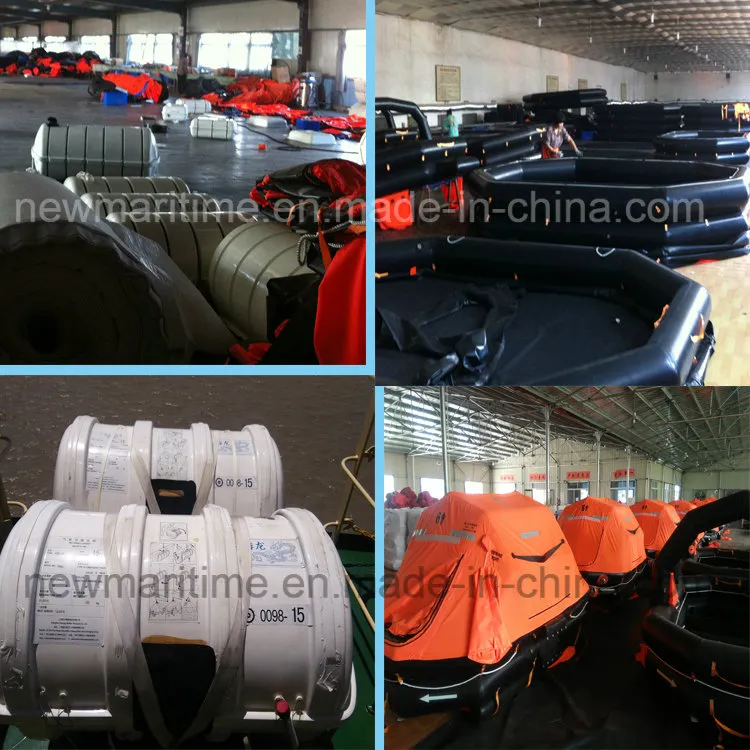

1. Advanced production equipment and experienced manufacturing teams
2. Completed in-house test equipment and strict quality control system
3. Reliable product quality and competitive price
4. Complete customer service and perfect after-sale service
