Product Description

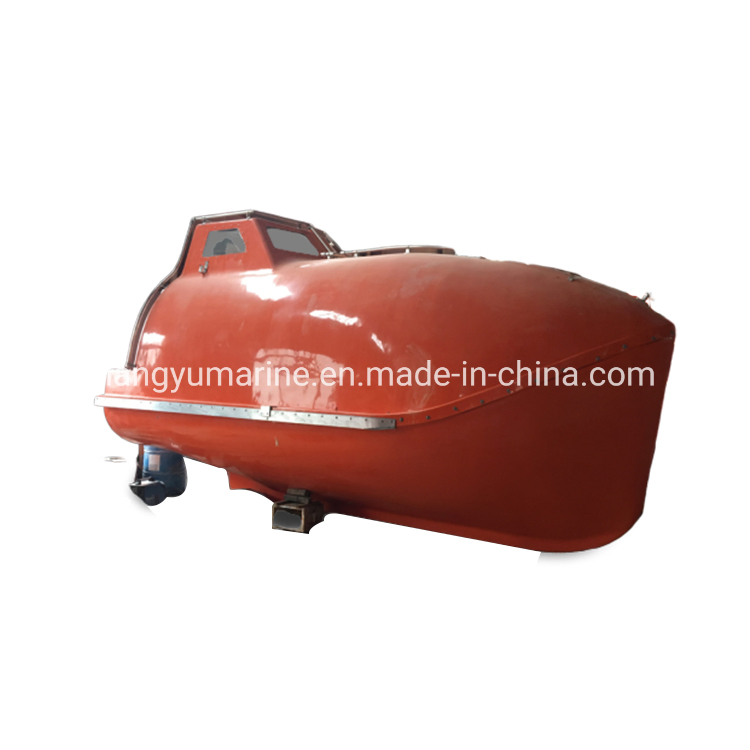

Free Fall Lifeboat with IACS Certification

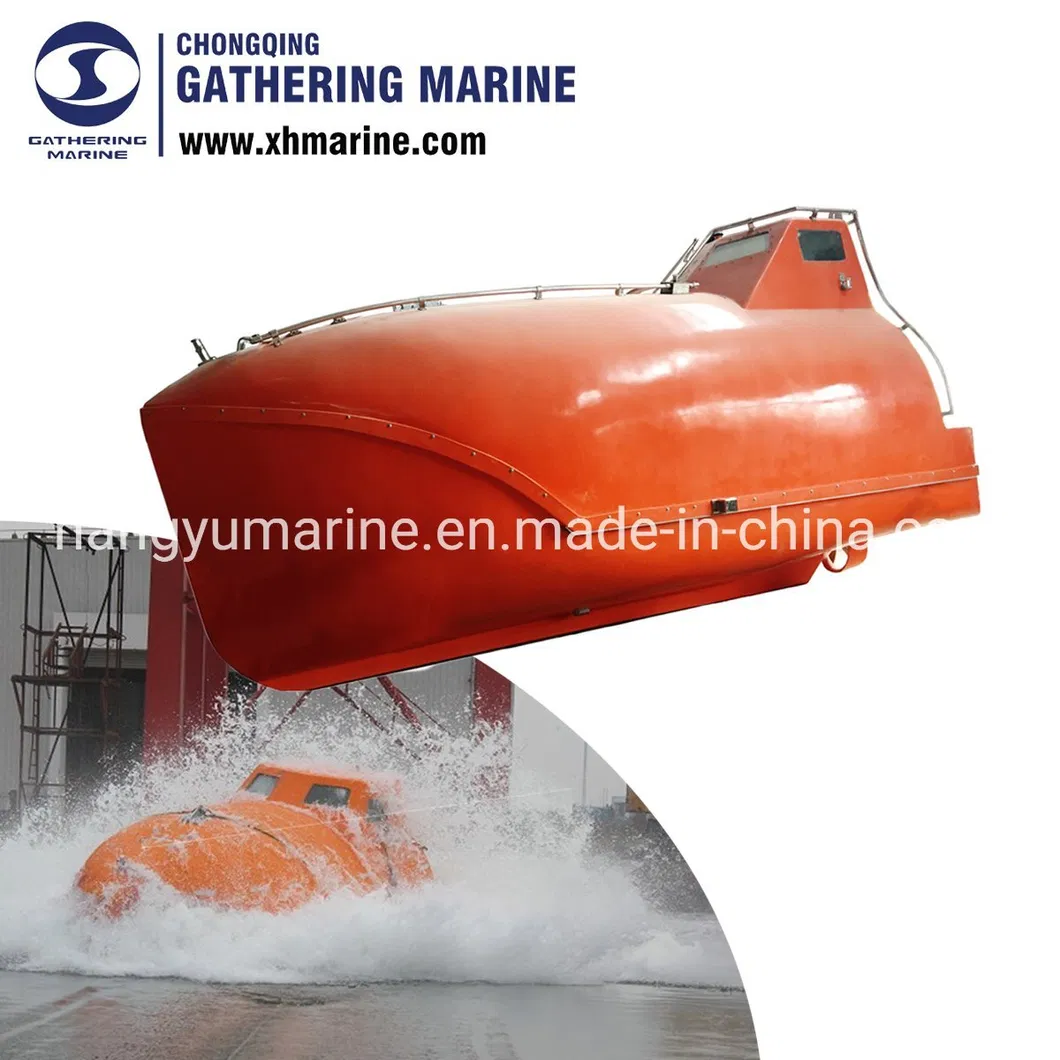

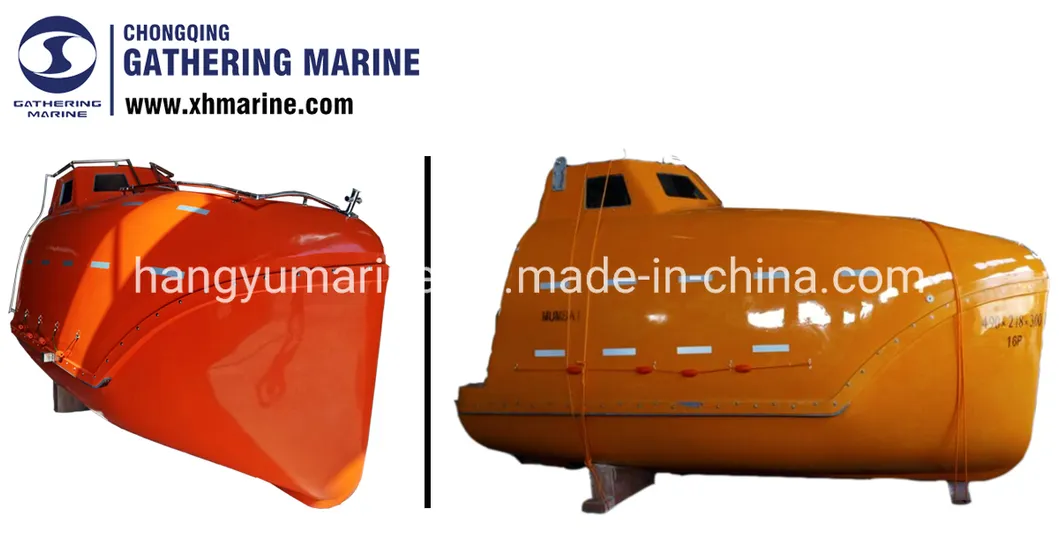

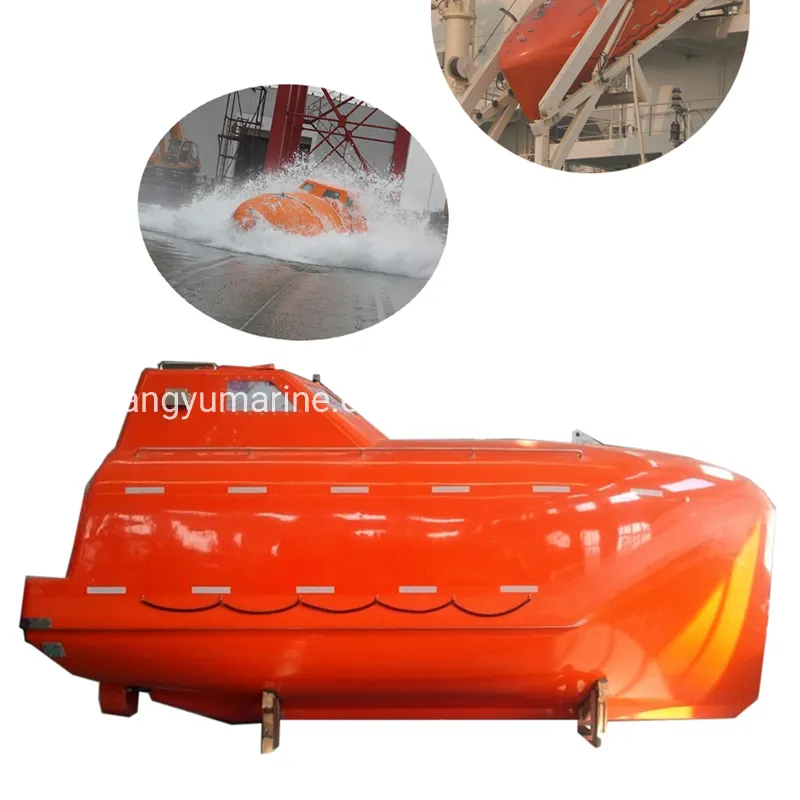

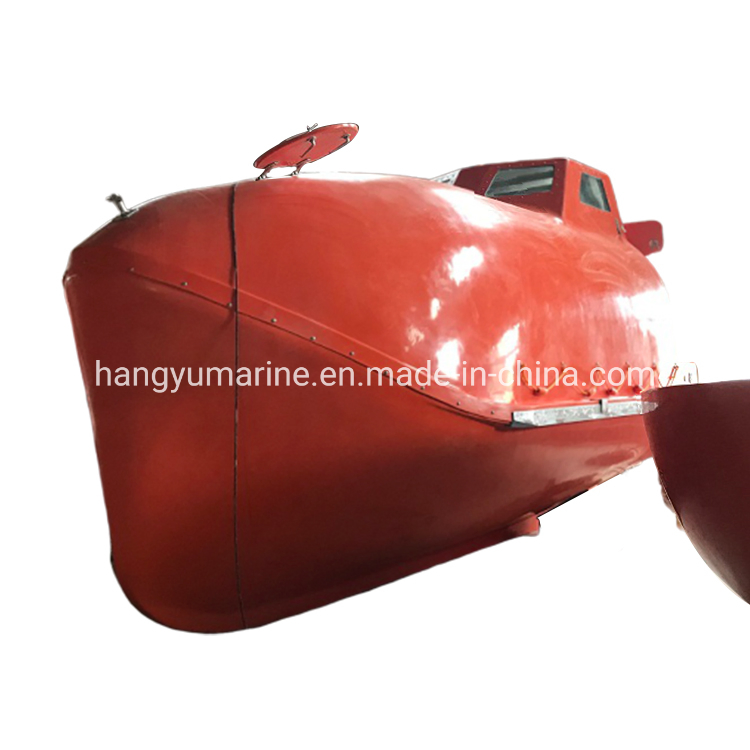

GATHERING Marine Free Fall Lifeboat has strengthened configration based on the totally enclosed lifeboat to bear the strong impact when falls to the water and can escape from the vessel and offshore platform quickly. It is especially suitable for the dangerous places such as oil drilling platforms.
Boat Body material:Fire-protected type FRP
It can self-righting by itself when capsized
Certification:CCS/BV/ABS/EC/RS
Welcome to contact us for more information.

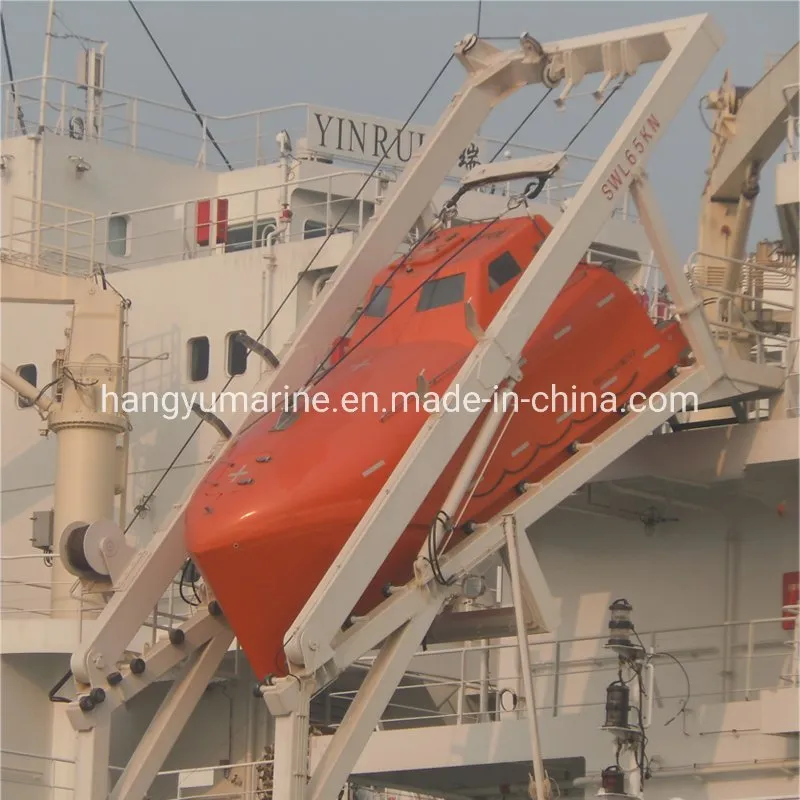

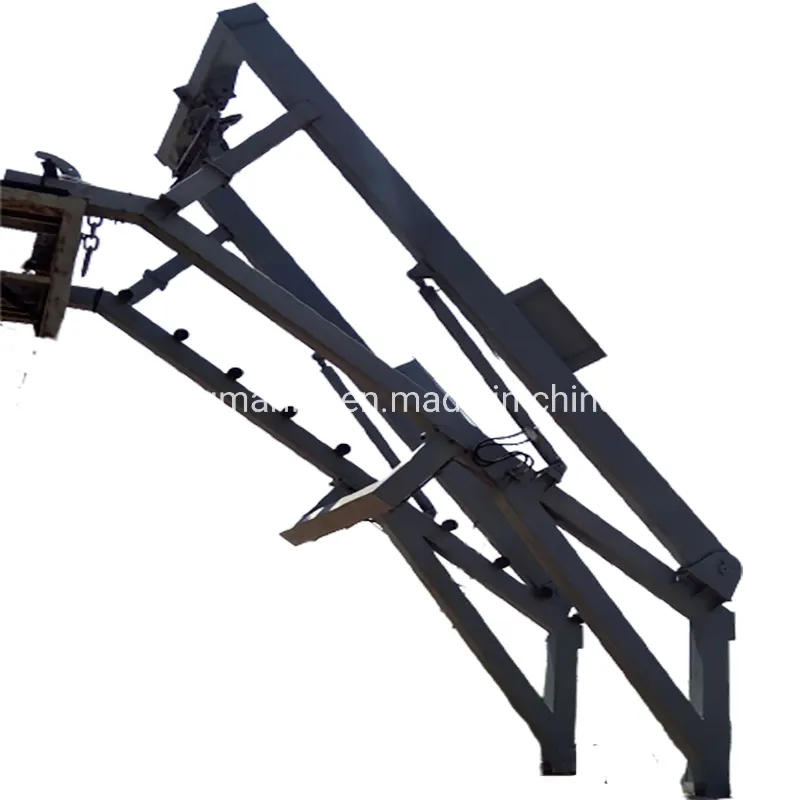

Free Fall Lifeboat is a model aboard from the sterm port designed and manufactured in accordance with the latest specification of SOLAS and Internationl standards. It slides down through the skideway(on ship or oil platform)freely to ensure quick and safe escape.
The passenger can be on board from the life gate and the driver inside can release the lifeboat and let Life boat slides into the sea safely.
Boat Body material:Fire-protected type FRP
It can self-righting by itself when capsized
Certification:CCS/BV/ABS/EC/RS
Specification OF Freefall Lifeboat:
| Type | Size | Capacity | Height | Speed | Weight | Full Weight |
| 49FC/FF | 4.9*2.18*0.7m | 16P | 3m | ≥6 | 2580/2870kg | 3900/4190kg |
| B52FC/FF | 5.2*2.35*3.07m | 16~20P | 3.07m | ≥6 | 2780/3120kg | 4100/4440kg |
| 59FC/FF | 5.9*2.36*3.1 | 26P | 3.1M | ≥6 | 2774/3120kg | 4919/5265kg |
| 60FC/FF | 6.0*2.32*0.86m | 20P | 3.1m | ≥6 | 3000/3300kg | 4650/4950kg |

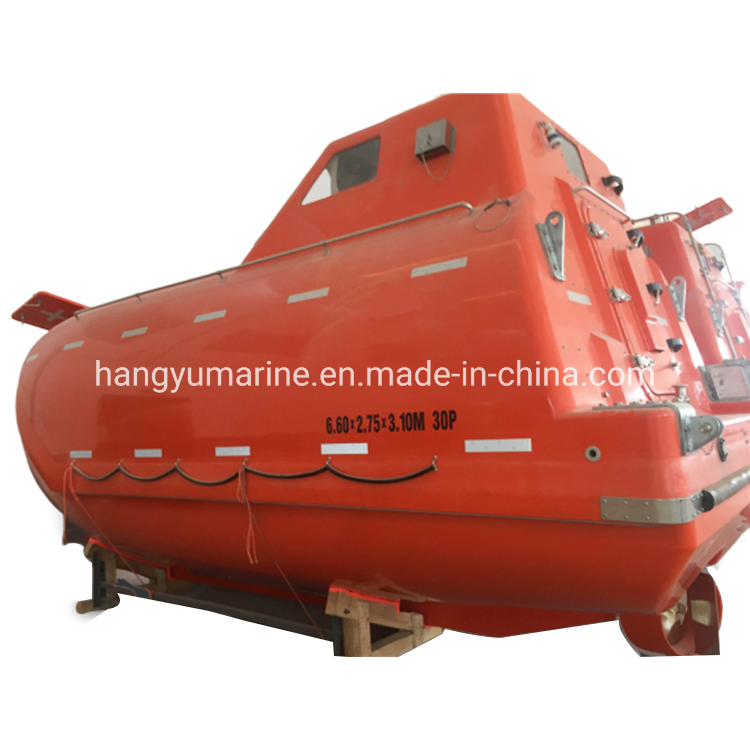

| 66FC/FF | 6.6*2.75*3.1m | 30P | 3.1m | ≥6 | 3520/3860kg | 5995/6335kg |
| 675FC/FF | 6.75*2.75*0.76m | 32P | 3.1m | ≥6 | 3530/3840kg | 6170/6480kg |
| B75FC/FF | 7.5*2.75*3.2m | 36P | 3.2m | ≥6 | 4140/4480kg | 7110/7450kg |
| 85FC/FF | 8.5*2.95*3.2m | 50P | 3.2m | ≥6 | 4560/4900kg | 8685/9025kg |
| 109FC/FF | 10.9*2.95*3.3m | 67P | 3.3m | ≥6 | 6508/6919kg | 12036/12446kg |
| 145FC | 14.5*3.25*3.4m | 90P | 3.4m | ≥6 | 9135kg | 16560kg |
| Note: FC: CARGO VERSION FF: TANKER VERSION | ||||||
